Products Description

Products introduction

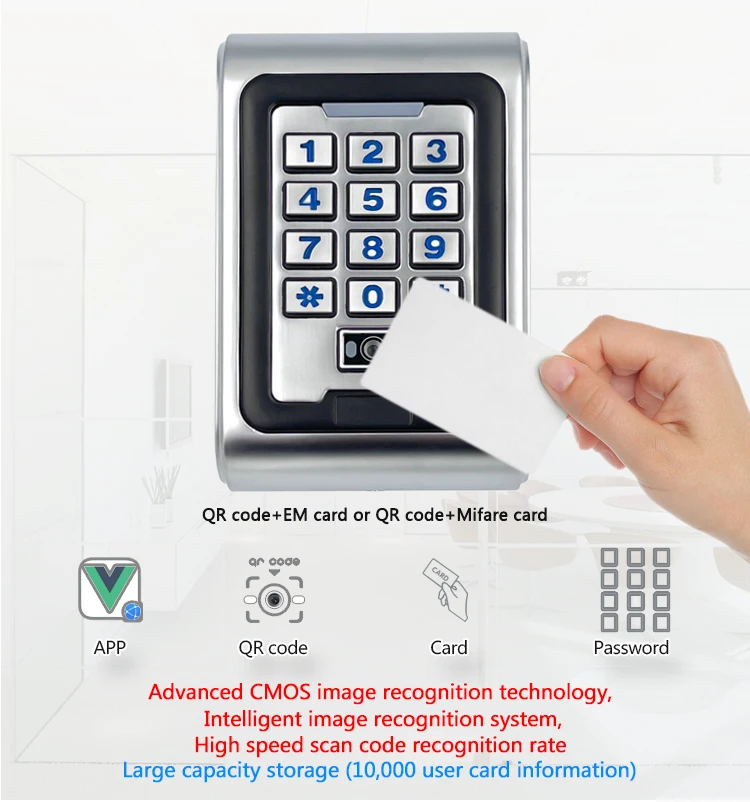

QR Code Door controller is our independent research and development production,

good performance QR code+RFID Card Standalone controller

Advanced CMOS image recognition technology, intelligent image recognition system,

scan code recognition rate of high speed, large capacity storage

(10,000 user card information).High security, simple operation, complete functions,

dynamic QR code APP+ card + password three ways to open the door

Feature:

*Mobile Barcode, MF cards or password open the door

*PWA web App Register: https://web.fondcard.net/pwas/index.html#/

*App Name:Quickopen

*With access control relay
*10,000 user
*Card Type: MF 13.56mhz(IC Card)

*6 digit Password

*Acrylic Panel

*With back light keypad
*With door bell
*Dimensions: 115*74*21(mm)

*Reading Mode: CMOS
*Accuracy: ≥ 5mil
* Voltage: DC 5~12V
*Comes with a filling light, automatically fills light when dark
*QR Code Recognition Time: Less than 0.5 second
*Signal Input: 1 set of open-door buttons
*Card Reading Distance: 3~6cm
*Card Reading Time: ≤0.3s
*With Buzzer

Waterproof RFID Metal Standalone Keypad Dynamic QR Code Scanner 13.56Mhz IC Door Lock Outdoor QR Code Access Control

Parameter

Dynamic QR Code Standalone Controller
Products Features	communication		Offline
	Management		6 digit Password
	App		Quicklopen
	Reading card type		MF Card
	Reading Range		MF:1~3cm,QR Code:1~20cm
	Card Capacity		≥10000 cards
	Door opening mode		App,Card,Password
	Prompt mode		Buzzer sound, Blue work light on, green light flashes
	Camera pixel		300000 pixels
	Scan resolution		640*480
	Reading angle		Rotate 360 °, tilt ± 45 °, deflection ± 45 °
	Keypad Type		Press (Non-keypad optional)
	Open door time		0~99s
	Door ell function		with Doorbell button(no Doorbell keypad optional)
Electrical parameters	Work voltage		DC12V
	Work current		100mA
Appearance and packing	Color and material		Black Plastic ABS(metal case optional)
	Size		120×80×18(mm)
	Install hole space		60 mm
	Packing list		(Dynamic QR Code Standalone Controller ,8P wire,manual)×1
Working environment	Working temperature		-10~60oC
	Working humidity		5%-85%

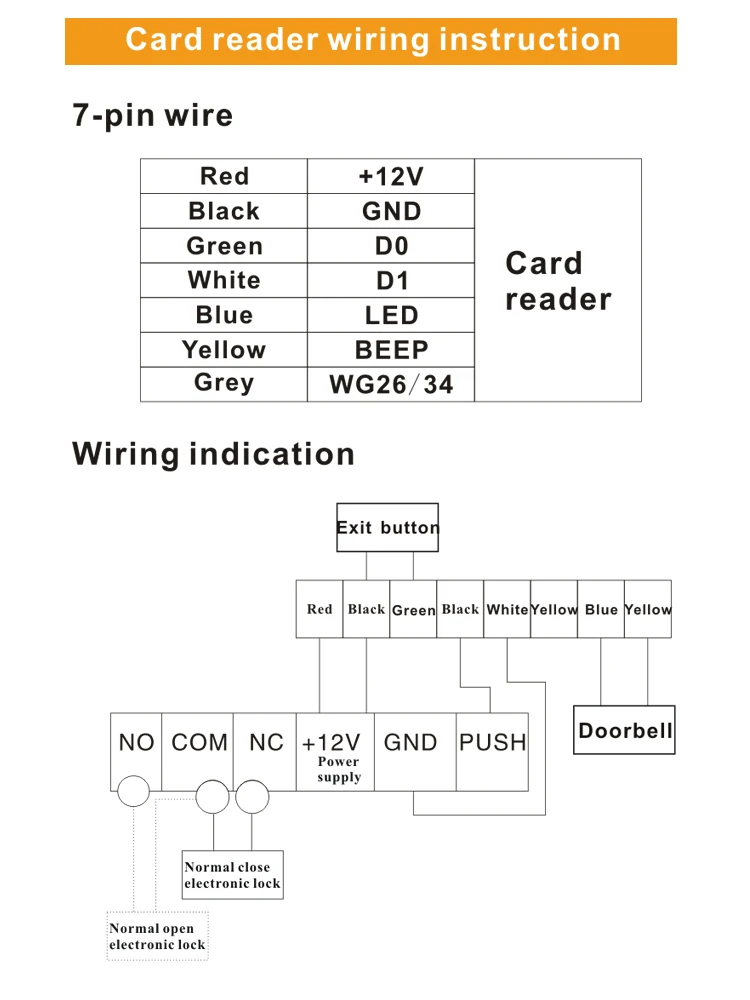

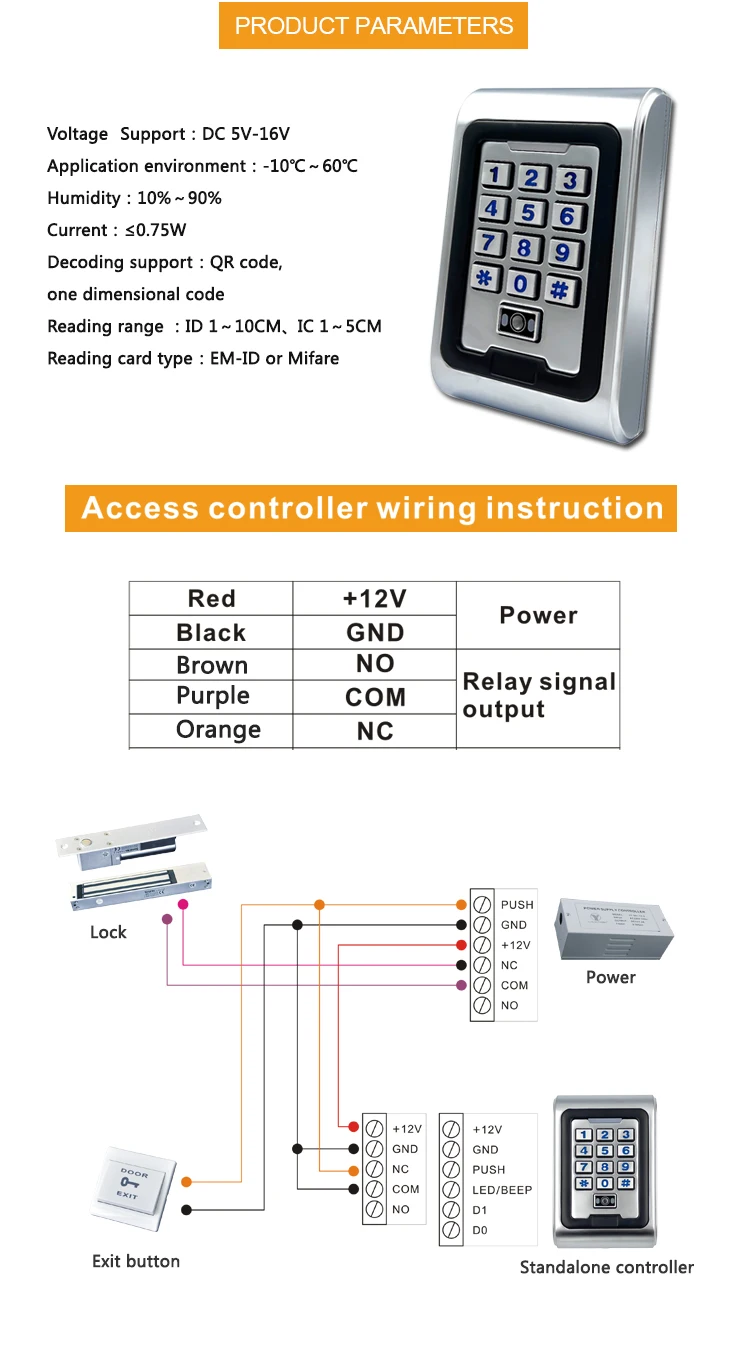

8P Socket Wire connection	Wire S/N	Color	Interface	Illustrate
	1	Red	DC12V	Cathode
	2	Black	GND	GND
	3	Yellow	NC	Relay NC
	4	White	COM	COM
	5	Black	NO	Relay NO
	6	Green	OPNE	Exit button
	7	Yellow	BEEP	Doorbell
	8	Blue	BEEP
