Products Description

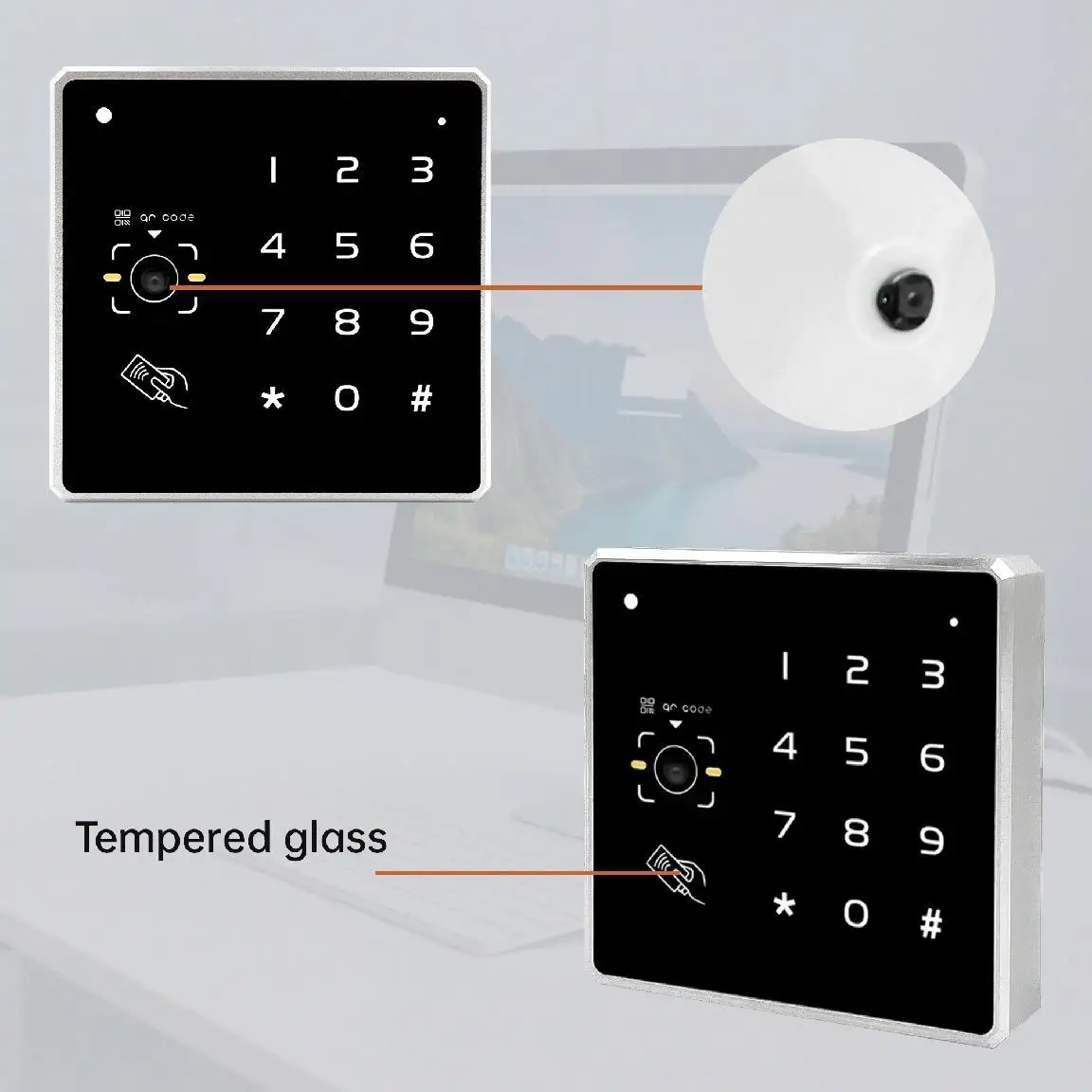

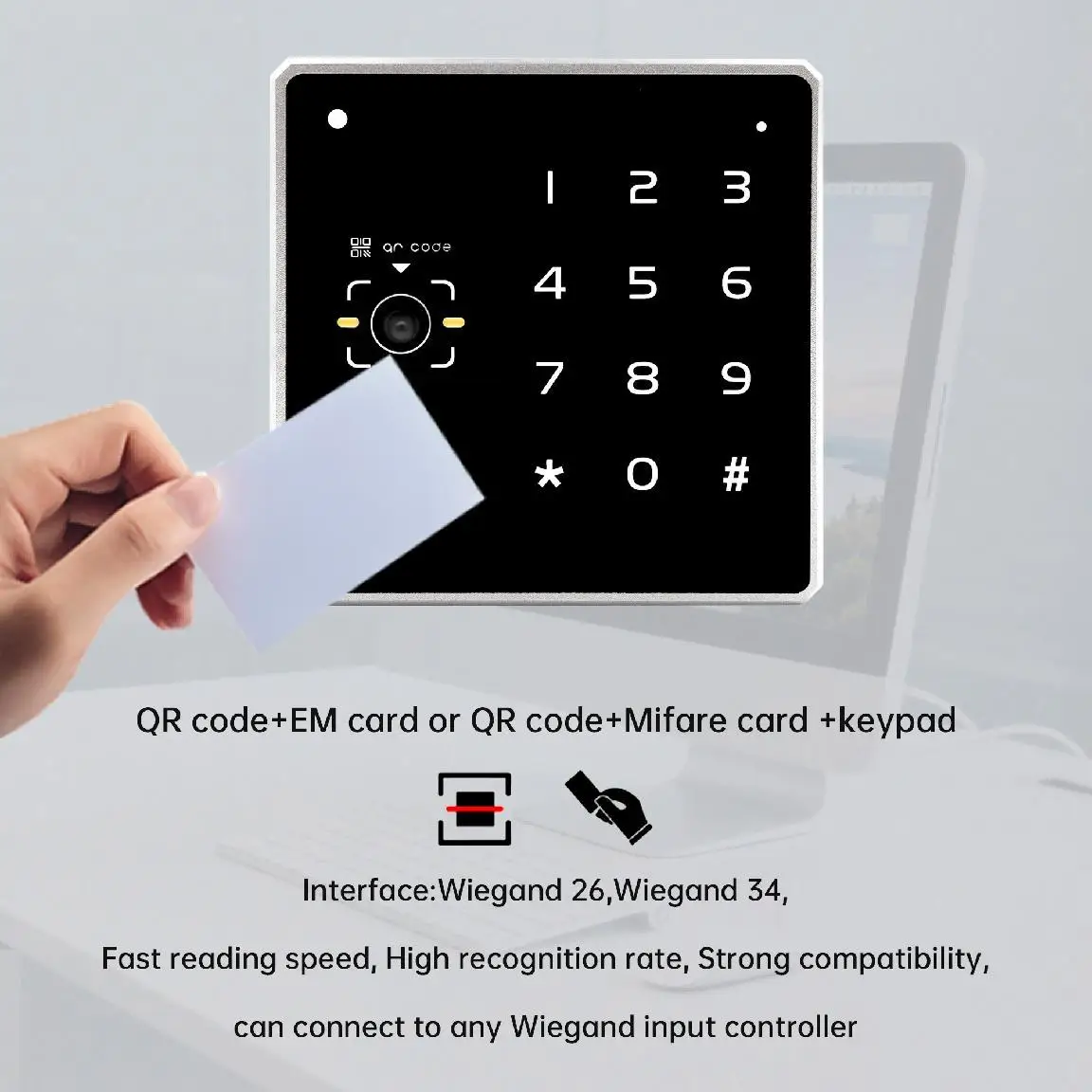

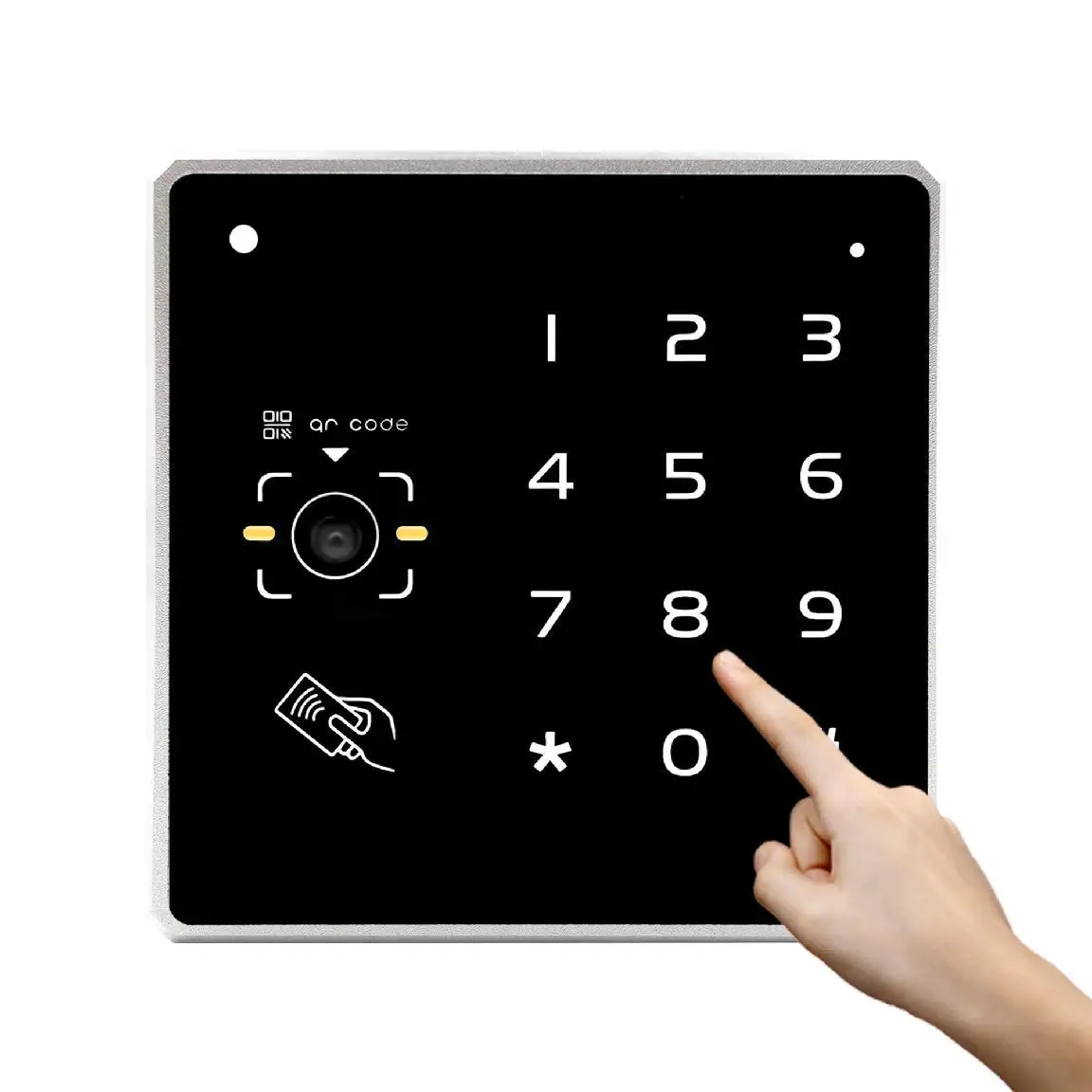

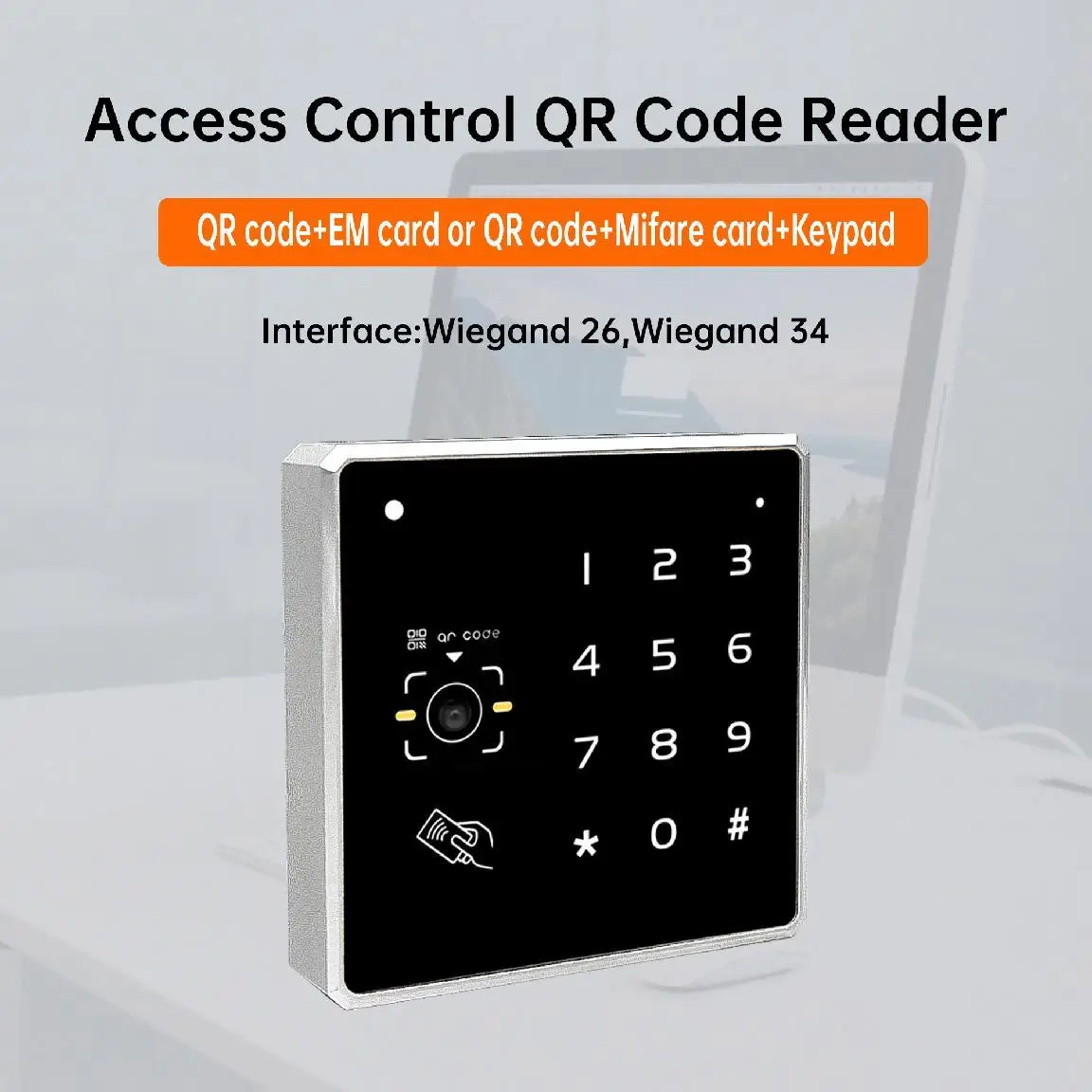

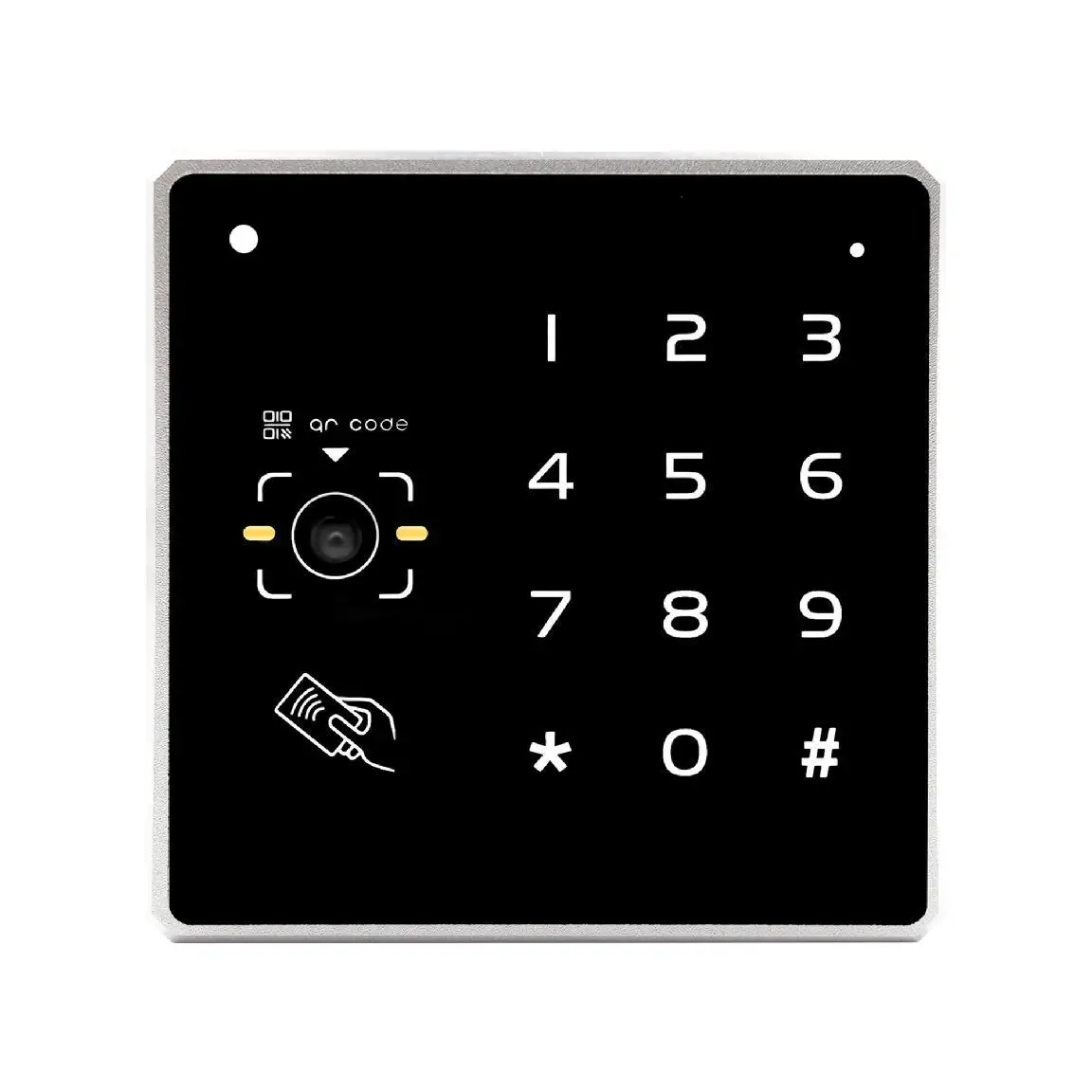

Metal Keypad QR Code Reader Password Access Control 2D Card Reader Wiegand26/34 Contactless Card Reader
QR Code Access Card Reader is our new intelligent Access Card Reader, Fast reading speed,
High recognition rate, Strong compatibility, can connect to any Wiegand input controller, widely used at Office access management, Tourism management, Community visitor access management, Administration Service Hall management, Gates access control, Visitors intelligent machines, Smart home; Upgrade old access control systems etc.
QR Code Reader Technical Parameter

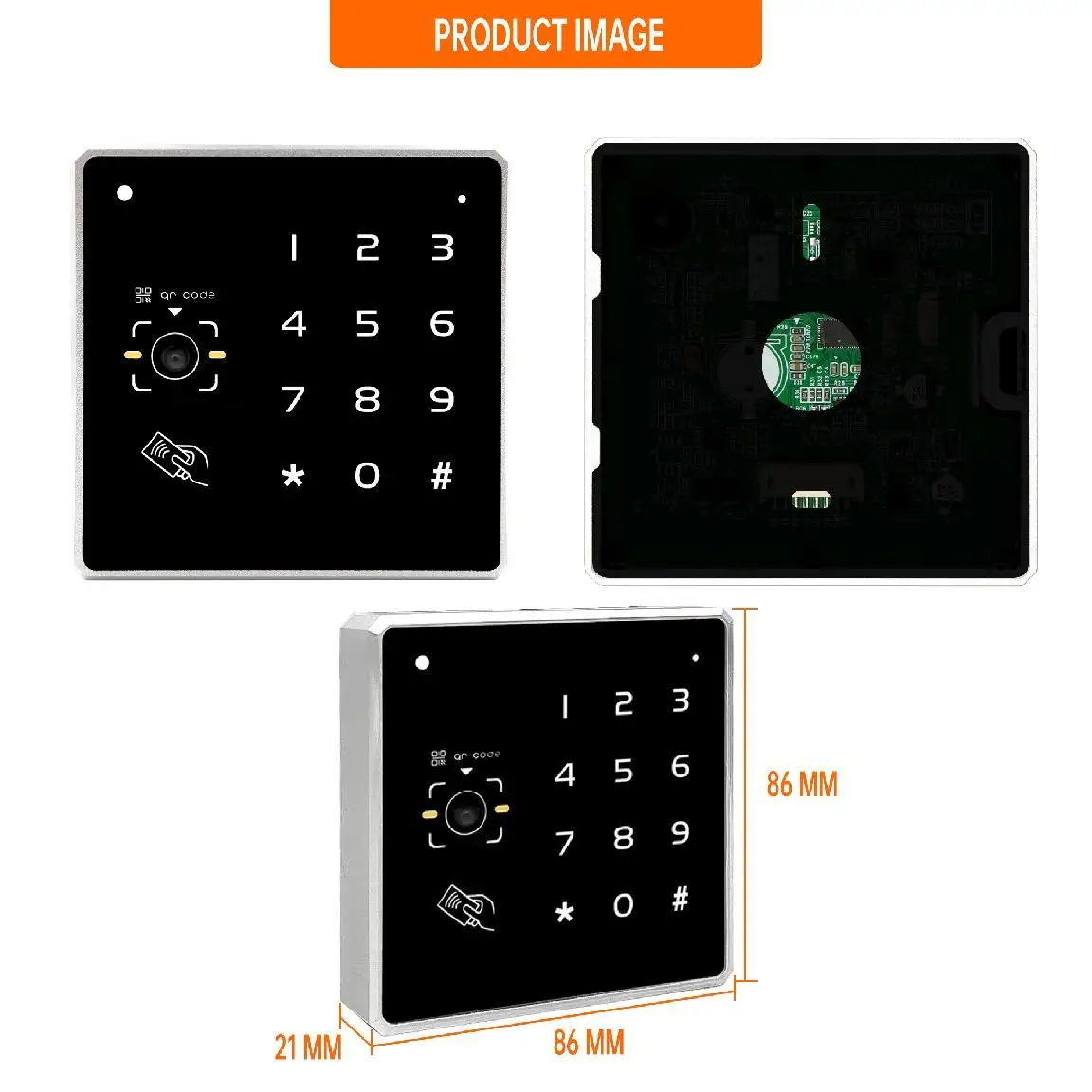

Size(L*W*H) | 86*86*42mm |
Material | Case:PC Identify panel:tempered glass |
Interface | Wiegand26,34 |
Support | QR code,Barcode,EM/MF Card,Password |
Voltage | Support 4-15V Wide voltage input |
Current | 800mA |
Reading directions | Camera centric slant 45° |
Reading speed | <200ms |
Reading range | 0-20CM |
Reading feature | auto-induction, beep hint |
Light source | With LED light source itself,anti-highlight interference |
Decode Mode | Image decoding |
Application environment | Temperature:-20~70ºC Humidity:10%~90% |
Operate system | Windows(xp 7 8 10),Linux |
Indicating status light | Red-Work,Green-Feedback,Light Green-Internet |
Reading range | 3-6CM |
Reading card type | EM or Mifare card |
Features:
1.DC 12V 1000MA
2.EM card or Mifare Card for choose
3.Identify paper or screen QR Code

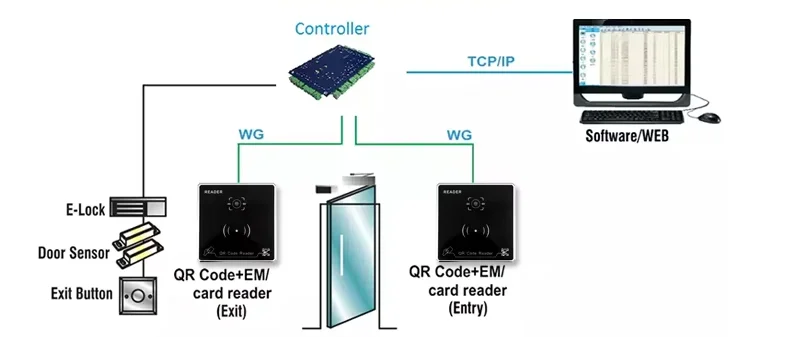

4.Support 26/34 weigand output to third party Access Control system
Wire connection:
VCC:DC12;
GND:GND;
D0:DATA0;
D1:DATA1;
LED:LED indicate;
BEEP:Sound ;
Note:
1: do not connect the power to the SPK+ and SPK- ports;
2:Wiegand output, QR code shall comply with the principle of combination of 1hexadecimal number 0~F, the QR code in accordance with this principle, controller can receive the card data; QR code not in accordance with this principle, the controller can not receive the card data;
3: Wiegand output, default QR code output is decimal number.
